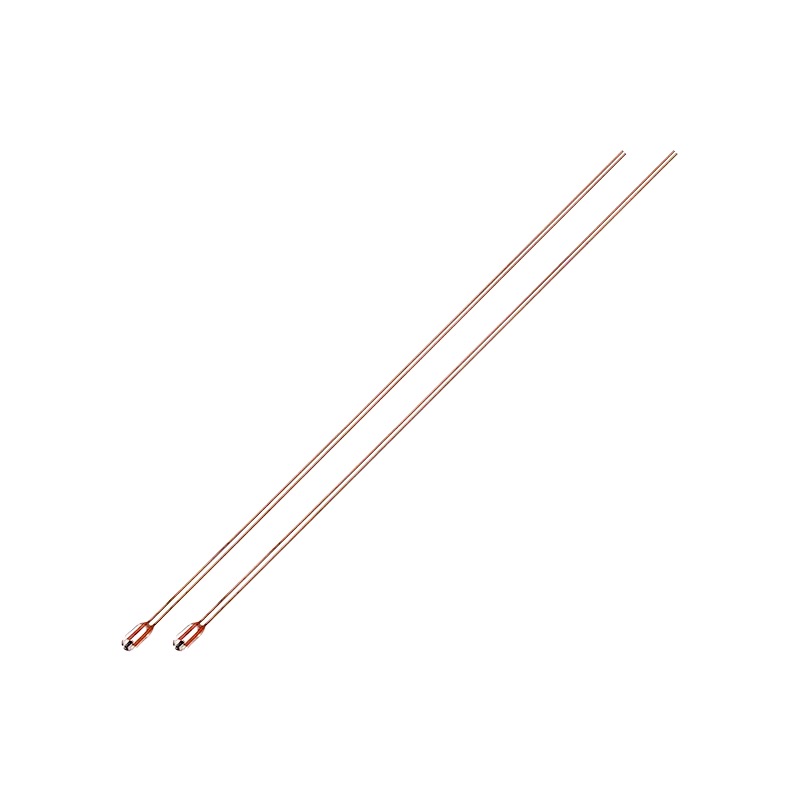

The K276 12K A24 NTC thermistor is identified by a model code and a 12K designation. A part number alone does not provide the full resistance–temperature curve, tolerance or assembly details needed to approve a sensor for production. This guide outlines what OEM teams should verify before selecting or integrating this thermistor.
What to confirm in the K276 12K A24 data
Confirm the reference temperature associated with the 12K resistance, the resistance tolerance, and the complete resistance–temperature data or the specified beta value and its temperature interval. Do not infer the meaning of “A24” or calculate temperatures from a generic NTC table; use the current datasheet or written supplier confirmation for the exact part revision.
Also request the available assembly drawing and identify the sensing element, lead or cable construction, insulation, dimensions and any encapsulation details relevant to your design. The model name by itself does not establish a temperature range, accuracy, response time, ingress rating or suitability for a particular industry.
Match the thermistor to the measurement circuit
An NTC thermistor’s resistance decreases as its temperature rises. The controller or measurement circuit must use the resistance curve for the exact K276 12K A24 revision. Check the input circuit, supply or reference, conversion method, calibration points and fault-detection behavior together with the sensor data.
For a first incoming check, measure resistance at a controlled, documented temperature and compare it with the supplier’s specified value and tolerance. This check helps confirm part identity; it does not replace validation across the operating range or in the final installed assembly.
OEM integration checklist
- Confirm the exact model revision, 12K reference temperature, resistance tolerance and R/T curve or beta interval.
- Specify the temperature range and system-level accuracy required by the application.
- Share the controller input circuit, conversion method and calibration requirements.
- Define probe dimensions, mounting, lead length, cable exit, insulation and environmental exposure.
- Validate thermal contact, response in the installed position, self-heating and repeatability in the real assembly.
- Request drawings, inspection criteria, sample availability and production-change notification requirements.
Request K276 12K A24 NTC thermistor information
When requesting a quote or sample, include the required quantity, operating conditions, mechanical drawing, cable and connector needs, controller details and target validation plan. Ask the supplier to confirm the current datasheet and drawing for the exact K276 12K A24 configuration before design release.
Explore the NTC thermistor range, review our NTC beta value guide, or send your OEM requirements for a quote.
