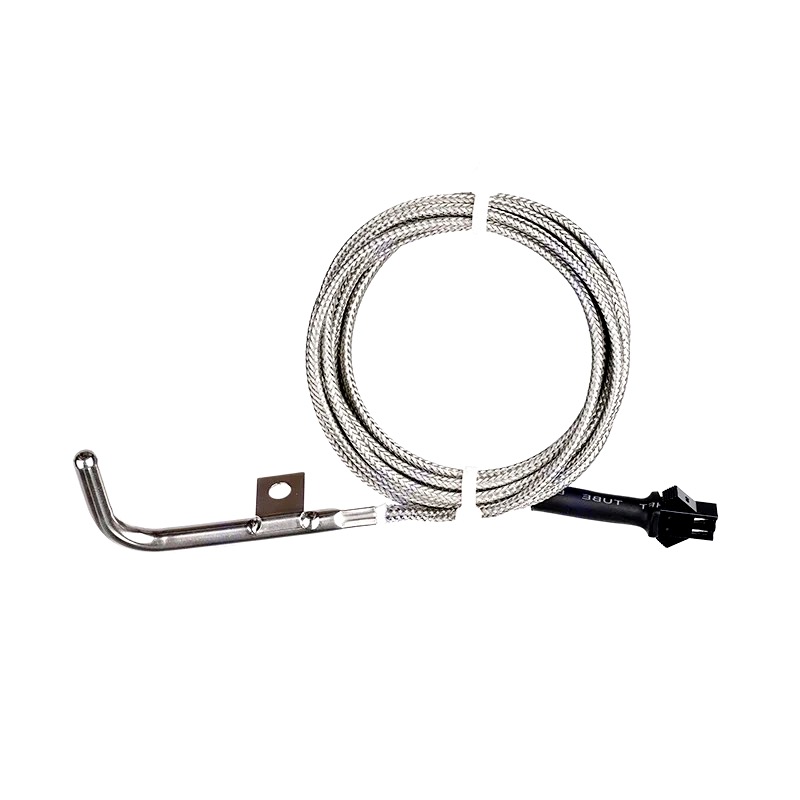

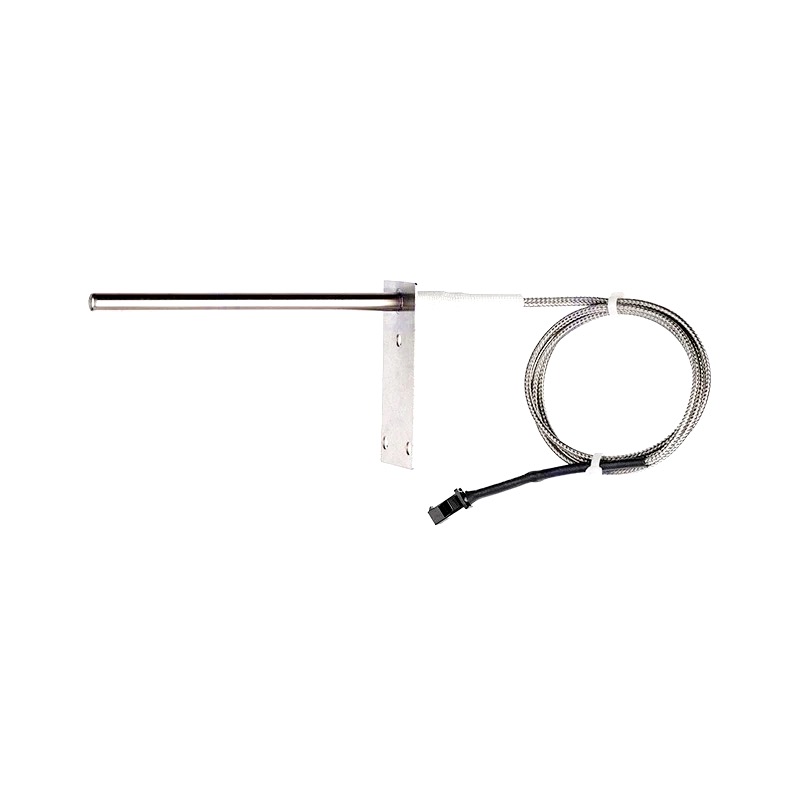

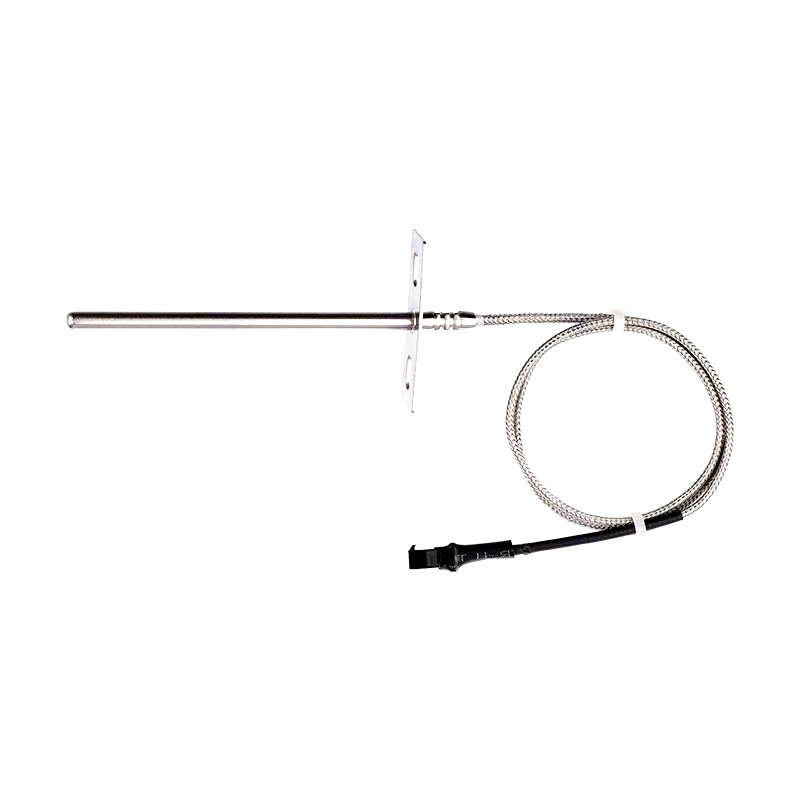

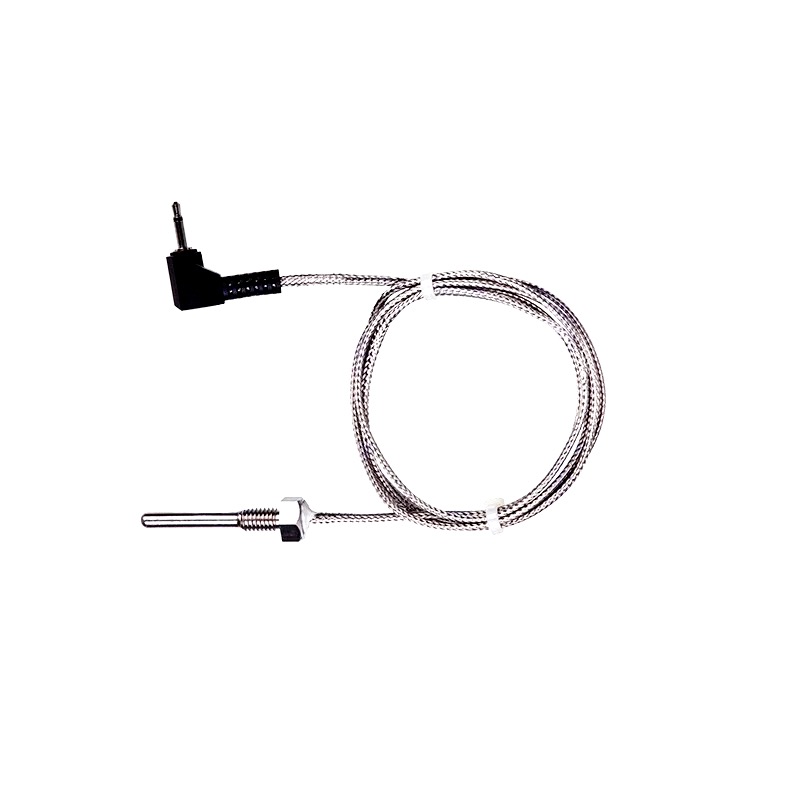

This 4-wire PT100/PT1000 RTD temperature sensor is designed for accurate temperature measurement in commercial ovens, grills, smokers, baking equipment and other high-temperature food processing systems. The four-wire configuration compensates for lead resistance and supports stable, repeatable readings in demanding control applications.
Key Specifications
| Parameter | Specification |
|---|---|
| Sensor element | PT100, PT500 or PT1000 platinum RTD |
| Wiring | Four-wire standard; two-wire and three-wire options available |
| Accuracy | Class A or Class B |
| Working temperature | -60°C to +300°C, +380°C or +450°C depending on the cable and assembly |
| Insulation voltage | 1500 VAC for 2 seconds |
| Insulation resistance | At least 100 MOhm at 500 VDC |
| Temperature coefficient | TCR 3850 ppm/K option |
| Probe material | Food-grade 304 stainless steel tube |
| Cable options | PTFE cable or high-temperature glass-fiber mica cable |
| Compliance options | RoHS, REACH, FDA and LFGB requirements can be supported |
Oven and Food Equipment Applications
- Commercial and electric ovens
- BBQ grills, smokers and baking equipment
- Food processing and cooking machinery
- High-temperature laboratory and industrial equipment
- Temperature control systems requiring stable RTD measurement
Installation and Wiring
The four-wire configuration is suitable for controllers that require lead-resistance compensation and repeatable temperature measurement. Probe length, diameter, mounting method, cable routing and connector selection should be matched to the equipment drawing and installation space.
OEM Customization
Starlight Sensors can customize the PT100, PT500 or PT1000 element, probe dimensions, mounting method, cable material, cable length, connector and wiring configuration. For a technical review, send the operating temperature, installation drawing or sample, required accuracy and expected quantity.
Request a Quote
For oven RTD samples, high-temperature probe evaluation or OEM production pricing, visit our Request a Quote page. You can also review the PT100 and PT1000 RTD sensor range for related configurations.
