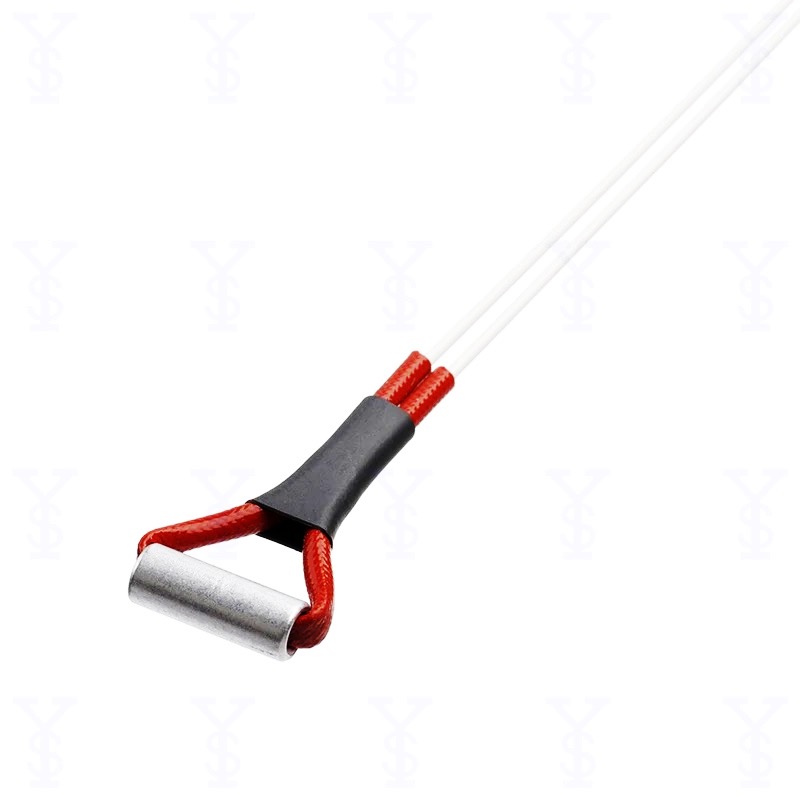

Electric Iron Temperature Sensor
The temperature sensors in this series, model Y12, are fastened and riveted into place. Its structure is straightforward, and its measurement sensitivity is great at high temperatures. Customers can easily install products in accordance with the structure’s requirements by customizing or matching different characteristic factors to suit their demands by choosing from a variety of dimensions that can be chosen from. In this series The product offers consistent temperature reading as well as stable and reliable functioning.
Performance
| Recommend | R100℃=6.282KΩ±2%,B100/200℃=4300K±2% R200℃=1KΩ±3% ,B100/200℃=4537K±2% R25℃=100KΩ±1% ,B25/50℃=3950K±1% |
|---|---|
| Working Temperature range | -30℃～+200℃ |
| Thermal Time constant | MAX.15sec |
| Insulation Voltage | 1800VAC,2sec |
| Insulation Resistance | 500VDC ≥100MΩ |
| Wire | Teflon wire |
| Connector | PH,XH,SM,5264 |
| Support | OEM,ODM order |
Features of Electric Iron Temperature Sensor
- Easy and convenient installation, simple structure, and size can be customized according to the installation structure.
- Resistance value and B value have high precision, good consistency, and stable performance.
- Wide range of applications, high-temperature resistance, excellent voltage insulation performance.
Working Principle of Electric Iron Temperature Sensor
NTC thermistors and bimetal thermostats perform different functions in an electric iron. An NTC thermistor provides a resistance signal that decreases as temperature rises; an electronic controller interprets that signal using the specified resistance-temperature curve. A bimetal thermostat instead uses differential thermal expansion to operate electrical contacts mechanically. These devices are not interchangeable. Confirm the required sensor technology, resistance curve, mounting and controller interface against the approved drawing or datasheet before selecting a replacement.
Request an OEM Electric Iron Temperature Sensor Quote
For an electric iron application, share the required resistance curve and tolerance, operating temperature, mounting and probe dimensions, wire material and length, connector, and expected quantity. Include the controller input and a drawing or sample reference for review.
