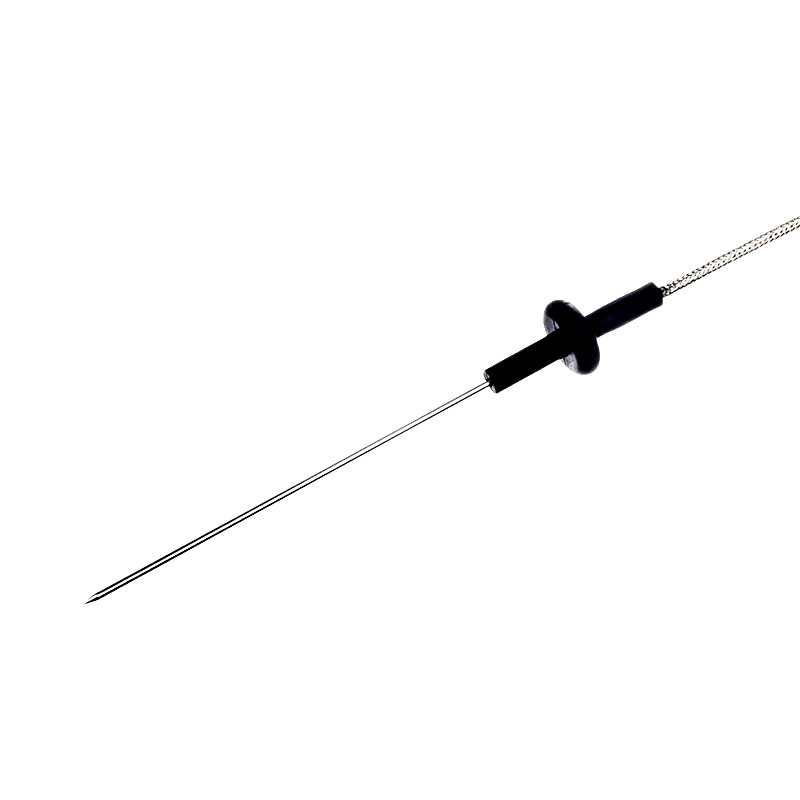

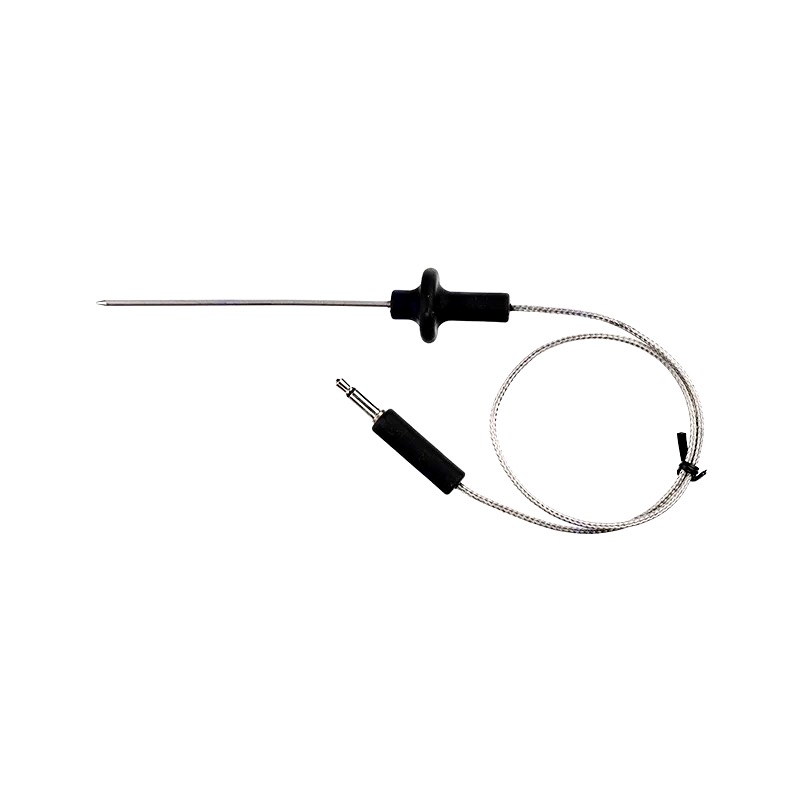

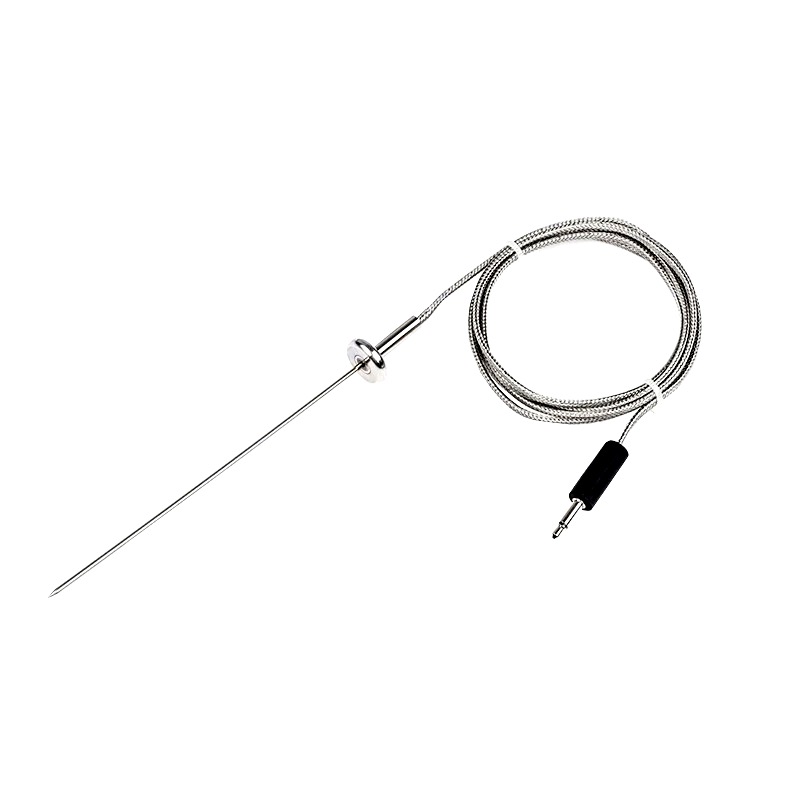

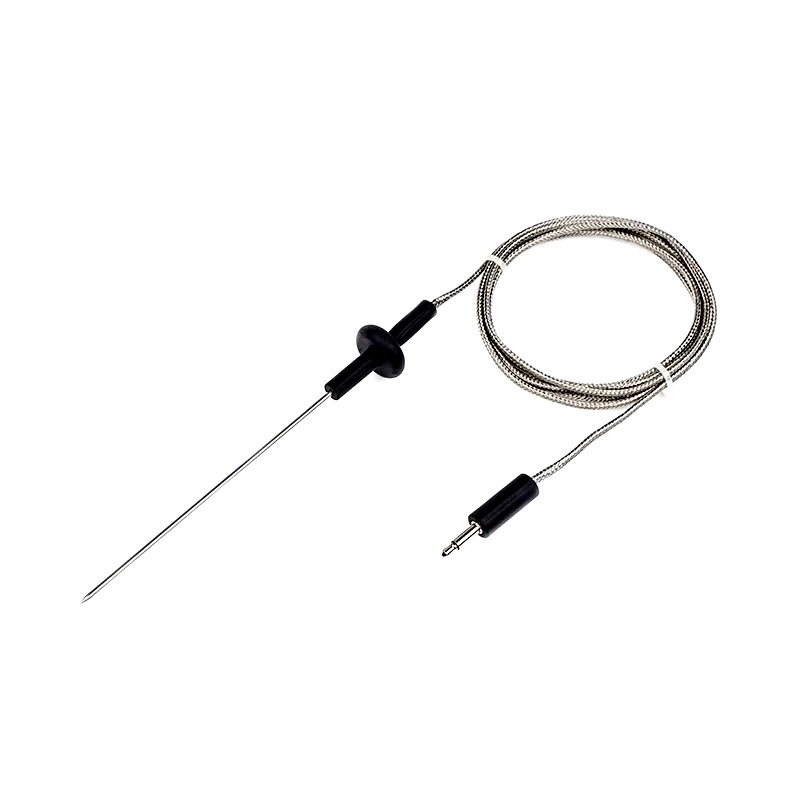

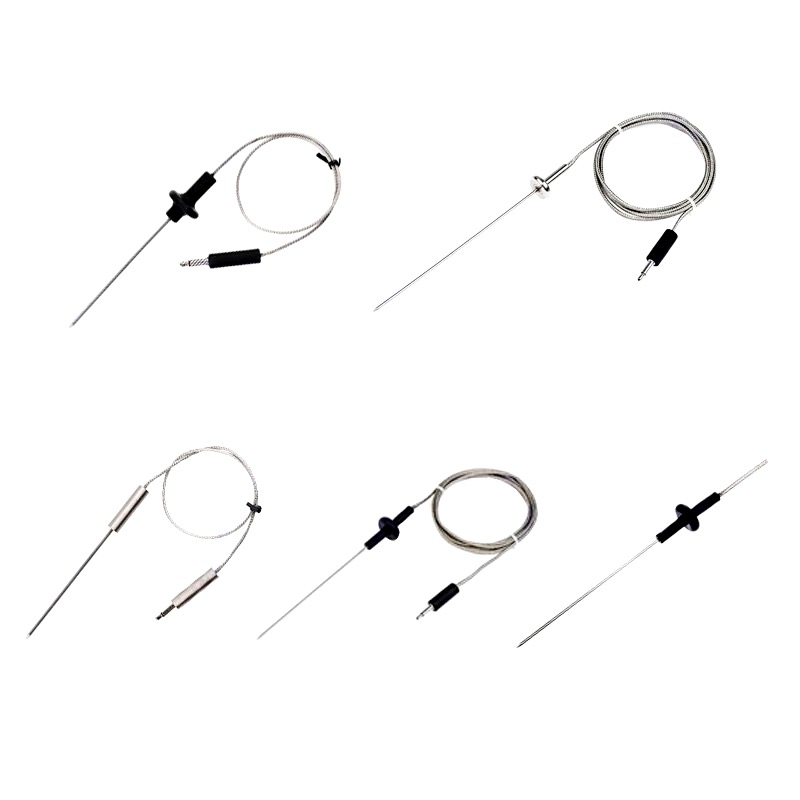

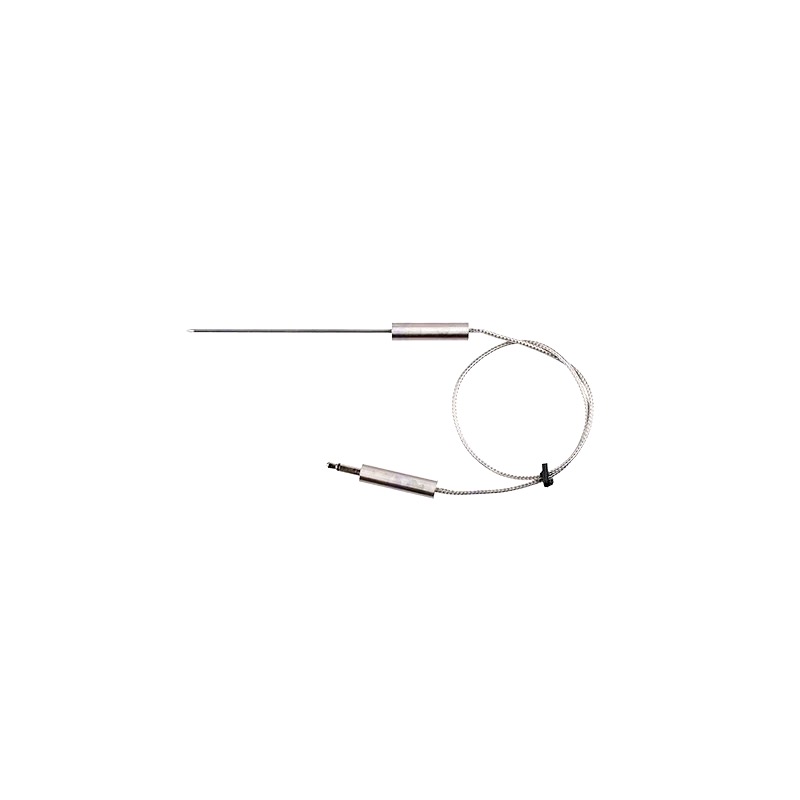

This NTC temperature sensor probe is designed for steam ovens, electric ovens and other home appliance temperature control systems. The Y37 series combines a high-temperature NTC element with a customized stainless steel tube, helping equipment manufacturers achieve stable measurement, fast response and reliable operation.
Key Specifications
| Parameter | Specification |
|---|---|
| Recommended NTC options | R25=100KΩ ±1%, B25/50=3950K ±1%; R25=98.63KΩ ±1%, B25/85=4066K ±1%; R25=50KΩ ±1%, B25/50=3950K ±1% |
| Working temperature | -50°C to +280°C |
| Thermal time constant | Maximum 6 seconds |
| Probe construction | Customized stainless steel tube with food-grade 304 stainless steel options |
| Wire | 380°C stainless steel mesh braided PTFE wire; food-grade silicone wire options |
| Plug options | 2.5 mm or 3.5 mm |
| Ingress protection | IPX3 to IPX7 options according to the equipment design |
| Supply model | OEM and ODM orders supported |
Steam Oven and Appliance Applications
- Steam ovens and electric ovens
- Food thermometers and oven thermometers
- Home appliance temperature control systems
- Cooking equipment requiring high-temperature NTC measurement
- OEM appliance assemblies with customized probe structures
Probe Design and Installation
The stainless steel tube, probe appearance, dimensions and thermal response can be adjusted to match the equipment structure and installation space. Select the NTC resistance and B value according to the controller input and required temperature curve. Cable routing, plug selection and sealing requirements should be confirmed against the equipment drawing.
OEM Customization
Starlight Sensors can customize the NTC resistance value, B value, stainless steel tube, probe dimensions, cable material, cable length, plug, connector and IP protection level. For technical confirmation, please provide the target temperature range, controller specification, installation drawing or sample and expected quantity.
Request a Quote
For steam oven NTC samples, technical evaluation or OEM production pricing, visit our Request a Quote page. You can also review our NTC home appliance temperature sensor range for related configurations.
