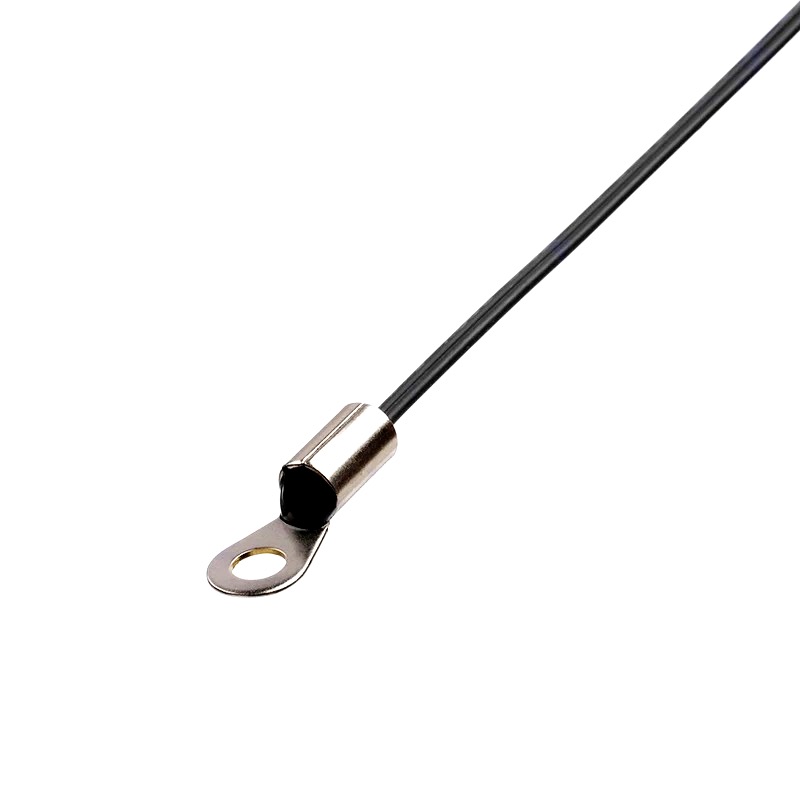

Installation is simple thanks to the design of this line of goods. In order to measure the body’s temperature, a temperature sensor is screwed into the surface of the object being monitored. The bottoms of coffee pots, UPS power cooling fans, coffee machine heating plates, and baking trays are all frequently fixed with it. In order to meet the requirements for temperature measurement and overheat prevention, wait for the heating element’s surface to detect the temperature of the object being monitored.
Characteristic Parameters：
| Recommend |
R25℃=10KΩ±1%,B25/50℃=3950K±1%
R25℃=15KΩ±3%,B25/50℃=4150K±1% R25℃=100KΩ±1%,B25/50℃=3950K±1% |
|---|---|
| Working Temperature Range | -30℃～+105℃-30℃～+150℃-30℃～+180℃-30℃～+230℃ |
| Thermal Time Constant | MAX.15sec |
| Insulation Voltage | 1800VAC,2sec |
| Wire | PVC,XLPE, Teflon |
| Connector | PH,XH,SM,5264 |
| support | OEM,ODM order |
The features of Heat-Generating Power Surface Contact
- The installation is simple and convenient, and the size can be customized according to the installation structure
- Resistance value and B value have high precision, good consistency, and stable performance.
- Moisture resistance, high-temperature resistance, wide application range.
- This series of products is designed with buckle fixing, using high-temperature materials and insulating sleeves, and using high-temperature sealant to fix and conduct heat. When the product is applied at a high temperature of 230 degrees, it can work normally.
- Excellent insulation performance.
The Application of Heat-Generating Power Surface Contact
Power supply, coffee machine, heating plate, baking pan
Request a Surface-Contact Temperature Sensor Quote
For a heating plate, baking pan or power supply application, share the measured surface, mounting space and screw layout, required resistance and tolerance, operating temperature, controller input, lead wire and connector, and expected quantity. A drawing or sample reference helps confirm the contact arrangement.
