MF52D NTC Thermistor: 10K B3435 configuration

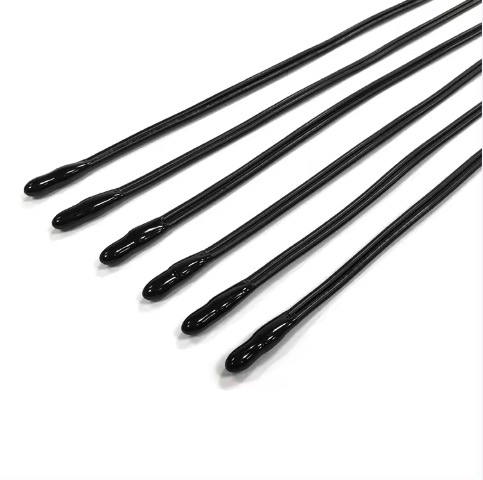

Starlight Sensors supplies epoxy-coated MF52D NTC thermistors for OEM temperature sensing. The parameters below describe one configuration from an internal product specification. They are provided for selection; final part approval must use the project-specific R/T curve and drawing shared privately.
Electrical and mechanical parameters
| Parameter | Example configuration |
|---|---|
| Resistance at 25°C (R25) | 10KΩ ±1% |
| B value | B25/85 = 3435K ±1%; the R/T table also identifies B25/50 = 3380K |
| Operating temperature | −40°C to +105°C |
| Epoxy-coated head | Maximum diameter 3 mm; maximum length 7.5 mm |
| Lead | Black UL4478 28# wire; length 100 ± 5 mm |
| Insulation resistance requirement | At least 100 MΩ at 100 V DC for 1 minute |
| Thermal time constant | Approximately 12 seconds in still air |
| Maximum rated power | 50 mW |
Resistance–temperature reference
Nominal resistance values in the internal specification are 10.000KΩ at 25°C, 4.168KΩ at 50°C and 1.461KΩ at 85°C. These three points are a reference, not a substitute for the full R/T table. Match the curve and B-value reference temperatures to your controller. A 10K B3435 element is not automatically interchangeable with a 10K B3950 probe.
Qualification and customer confidentiality
The specification sets out test methods and acceptance criteria; it is not a completed test report or a third-party RoHS certificate. Request applicable qualification evidence for your project. We keep customer drawings, files and project-specific part numbers private.
Request an OEM MF52D quote
Send us the required R25, B-value temperature pair or full R/T table, tolerances, operating range, head size, lead length, termination, application and order quantity. We can review the configuration with you directly.
