This PT1000 threaded RTD temperature sensor is designed for stable and repeatable temperature measurement in industrial equipment, HVAC systems, heat pumps, food processing machinery and OEM assemblies. The stainless steel probe and threaded process connection support secure installation where the sensor must remain fixed during operation.
Key Specifications
| Parameter | Specification |
|---|---|
| Sensor type | PT1000 platinum resistance temperature sensor |
| Measurement range | -50°C to +500°C |
| Accuracy option | Pairing accuracy up to ±0.1°C; Class B option available |
| Probe material | Stainless steel 316L protective sleeve |
| Process connection | Movable threaded connection; G or M10 x 1 options |
| Lead wire | PVC cable, approximately 4.2 mm outer diameter |
| Wiring | Two-wire configuration; other wiring options available by request |
| Pressure resistance | Up to PN16 under suitable operating conditions |

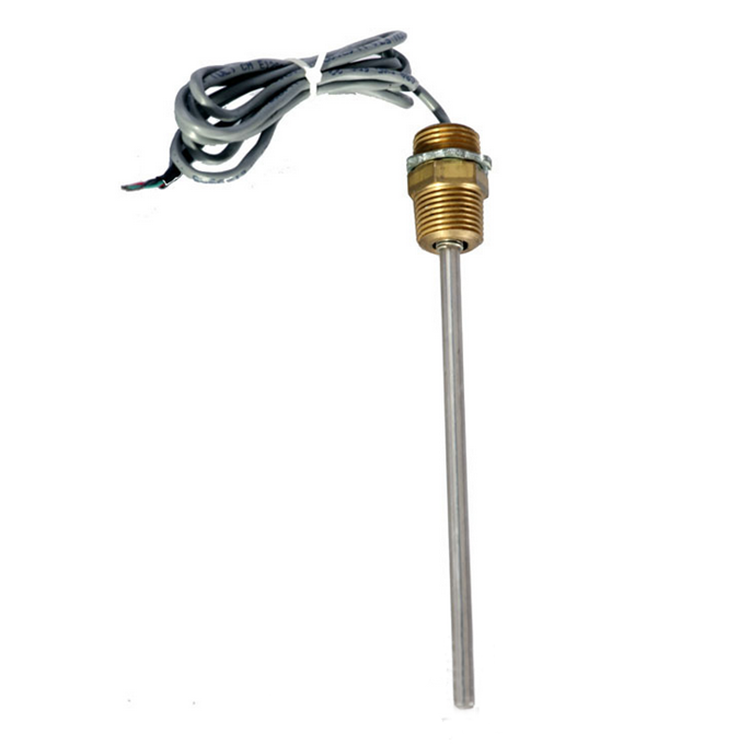

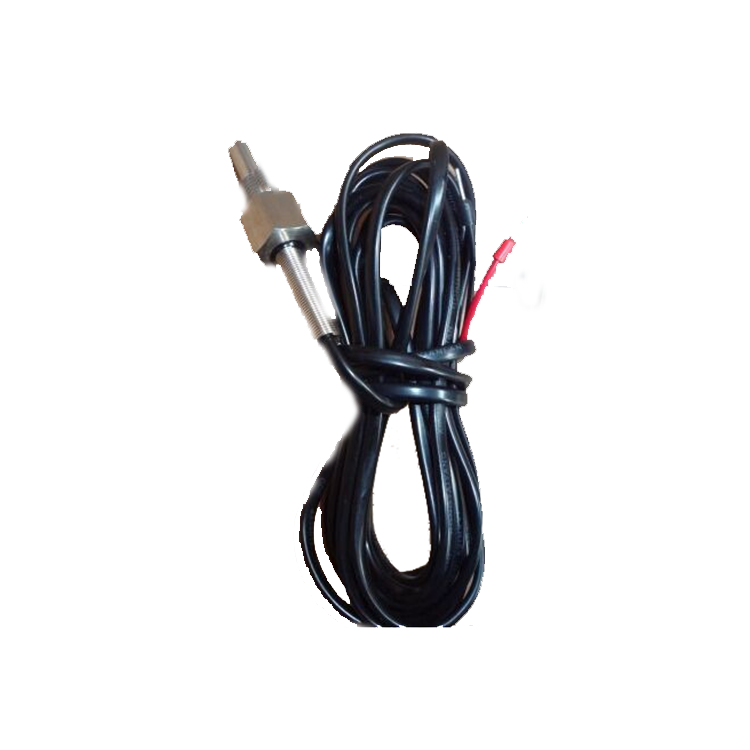

Threaded RTD Probe Design
The threaded probe is intended for fixed mounting in equipment, pipework, tanks and process assemblies. The movable thread design helps position the sensing tip during installation, while the stainless steel sleeve provides mechanical protection in demanding environments. Final thread size, insertion length and cable routing should be confirmed against the equipment drawing.

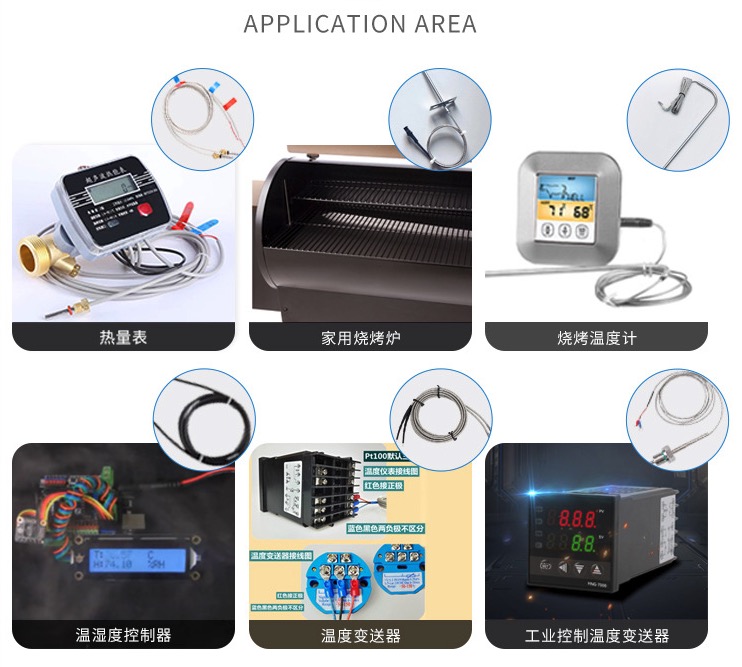

Typical Applications
- Industrial process equipment and machinery
- HVAC controls and heat pump systems
- Food processing and commercial kitchen equipment
- Laboratory and analytical instruments
- Energy and power equipment monitoring
- OEM temperature control and safety-limit assemblies
OEM Customization
Starlight Sensors can customize the probe diameter, insertion length, thread type, cable length, connector, lead-wire configuration, insulation and calibration requirements. For technical evaluation or production pricing, please provide the required temperature range, installation drawing, thread specification, cable requirements, quantity and application environment.
Request a Quote
For PT1000 samples, technical confirmation or OEM pricing, visit our Request a Quote page. You can also review the PT100 and PT1000 RTD sensor range for related configurations.
