PT100/PT1000 RTD Temperature Sensor for Steam Ovens

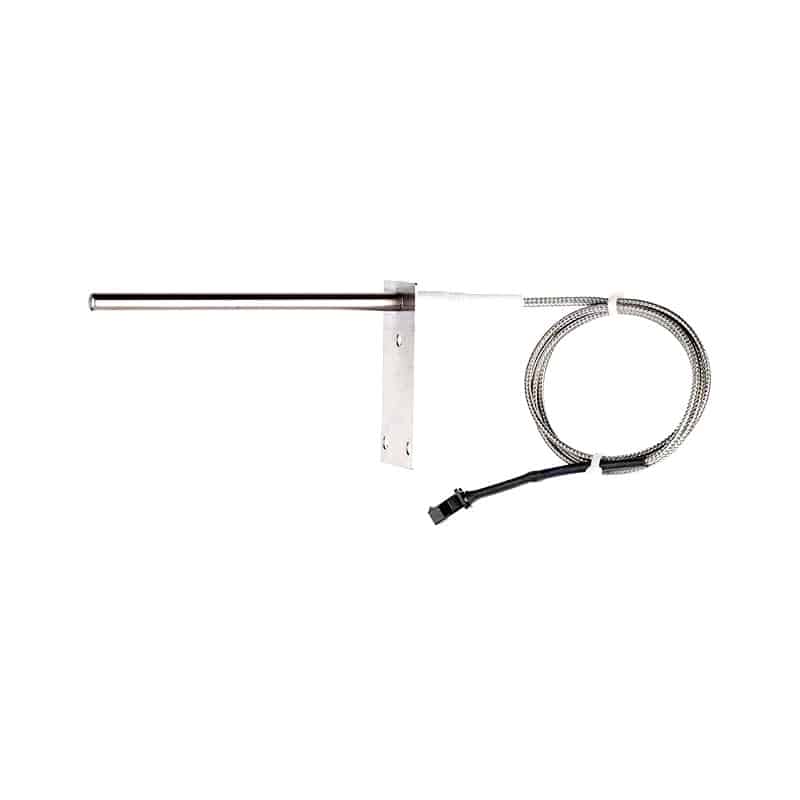

This high-temperature PT100/PT1000 RTD temperature sensor is designed for steam ovens, commercial ovens and food equipment that require stable measurement in hot and humid environments. The Y53 series uses a 304 food-grade stainless steel protective tube, an RTD sensing element and high-temperature cable options for reliable temperature monitoring.
Technical Specifications
- Sensor element: PT100 or PT1000 platinum RTD
- Wiring: two-wire configuration; other wiring options can be customized
- Accuracy: Class A or Class B
- Working temperature: -60°C to 380°C or -60°C to 450°C, depending on the cable and assembly
- Insulation voltage: 1500 VAC for 2 seconds
- Insulation resistance: at least 100 MOhm at 500 VDC
- Temperature coefficient: TCR 3850 ppm/K option
- Probe material: 304 food-grade stainless steel tube
- Cable options: 380°C PTFE cable or 450°C glass-fiber mica cable
- Long-term stability: maximum temperature change below 0.04% after 1,000 hours of operation
Applications
Typical applications include steam ovens, commercial baking ovens, electric ovens, food processing equipment and high-temperature cooking systems. The sensor supports accurate temperature control in environments with heat, moisture and repeated cleaning cycles.
OEM Customization
Starlight Sensors can customize the probe length, diameter, mounting structure, RTD element, cable material, cable length and connector to match your oven or control system. A stainless steel surface treatment can also be discussed where the application requires improved resistance to grease and surface reflection.

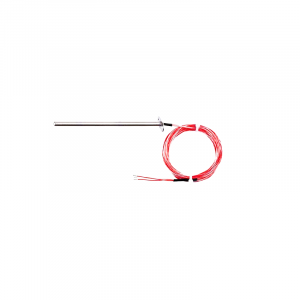

Compare this solution with our 4-wire PT100/PT1000 RTD sensor for ovens, browse the PT100 and PT1000 RTD temperature sensor range, or contact our engineering team for a quotation.
